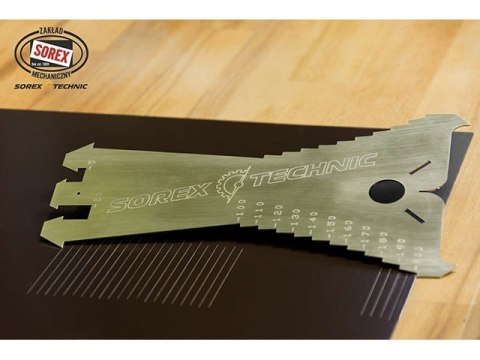

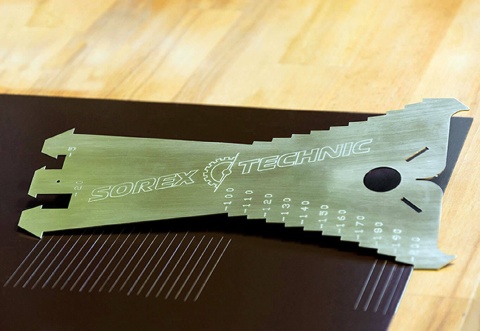

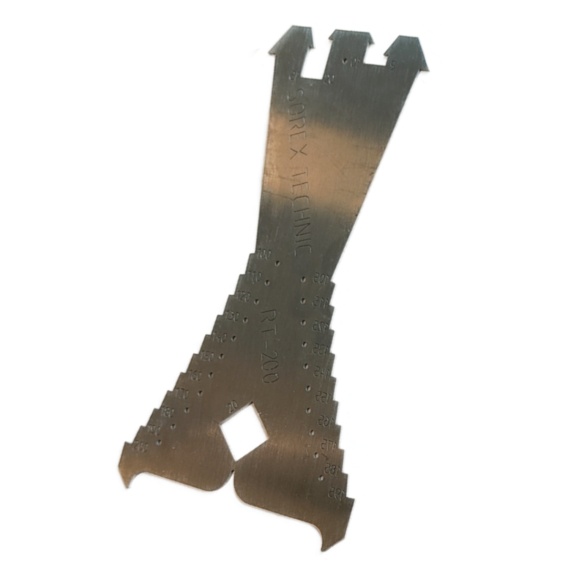

Sorex Technic RAYZA RT 200 SCRIPTOR TEMPLATE (100-200mm)

The template - scriber - compass - is used for marking parallel edge lines on sheet metal, with a working range from 5 mm to 200 mm, in 5 mm increments. What distinguishes our templates is their ability to be used as a compass. The unique template design allows for marking circles with radii from 25-200 mm, also in 5 mm increments. Another innovative application is the ability to deburr sheet metal edges using the back of the template. Our rayzas are made of tool-grade stainless steel and additionally heat-treated for greater durability. Another advantage is the mechanical engraving; the inscriptions are permanent and abrasion-resistant. We've come across many names for this device; here are the most common: rayza, scriber, crow, eagle, lerka, lilka, ryska, rysik, marker, raiza, and anreissschablone. The given parameters can be achieved with both of the offered styluses.

Technical data:

- Working range 5 - 20 mm and from 100 to 200 mm, in 5 mm increments

- Compass - Circle marking in the working range from 100 mm to 200 mm, in 5 mm increments

- CHAMFERING of sheets (non-ferrous steels: aluminum, titanium, zinc, copper)

- Marker made of tool stainless steel, hardened

- Mechanically engraved, abrasion-resistant numbers

- Sheet thickness 1.5 mm

- Dimensions 135 mm x 235 mm

- weight 0.2 kg
