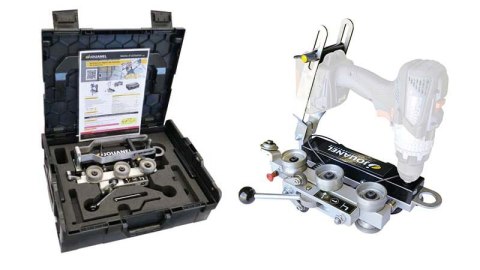

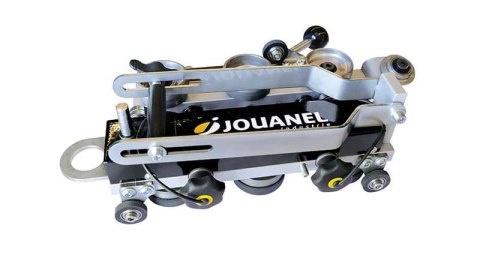

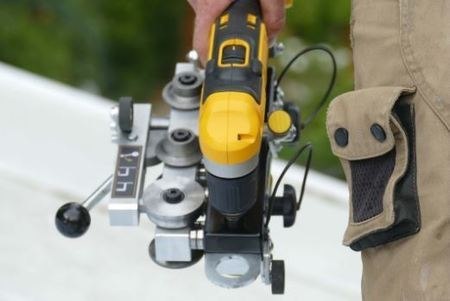

Jouanel Electric Seam Closer Rotary SRLT12

Jouanel Electric Seam Crimping Tool SRLT12 Rotary

Lightweight seam crimping tool SRLT12 for 25 or 32 mm high standing seam profiles - 1st and 2nd bend, with screwdriver base and carrying case (screwdriver not included)

The device is equipped with a "hands-free" system with speed regulation - the closer moves autonomously, making it easier to work with long panels. The small size and the "hands-free" system enable convenient work between the scaffolding and the facade without removing the device.

Application: Double standing seam roofing, angled seam on the facade

Video showing the machine in operation:www.youtube.com/v/uldvg7YZkjU

Biggest advantages:

• Increased productivity on the construction site: quick and consistent joining
• Replaces the long and tedious work of manually closing the seam
• Ideal for long profiles
• Can be used for 25 mm wide standing seam profiles 32 mm
• Angled infeed roller for easy splicing
• The pressure setting allows you to flatten the first bend depending on the material, to maintain the material expansion necessary for the job and reduce marking when sliding over the tray mounting brackets
• Unit with support wheels for a secure grip on the profile to be clamped
• The machine does not put stress on the splicing rollers

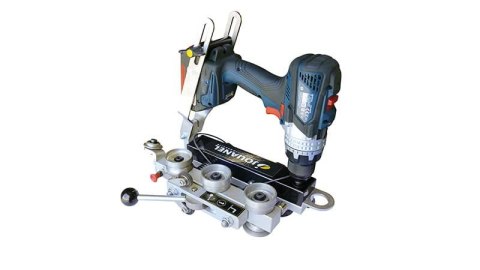

• Easy installation of the screwdriver on the holder, no tools required
• Special Drive option for cladding, with a "hands-free" setting, allowing it to move automatically between the scaffolding and the sheet to be clamped (only for the first clamping).
• Clamping setting compatible with most screwdrivers on the market.
  (min. torque 30 Nm)

Standard equipment:

• Clamping unit for bend no. 1 and reversible for bend no. 2.
• Quick lever Locking/Unlocking
• Adjustment profile height - 25mm or 32mm
  (at delivery, the height is set to 25mm)
• Fold-out screwdriver attachment
• Pressure setting allows for flattening adjustment, 5 positions
  (only for the first assembly)
• Support wheels
• 3 sets of rollers
• Steel rollers Coated and hollow.
• Fall-away ring.

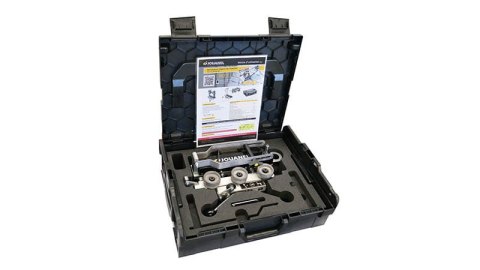

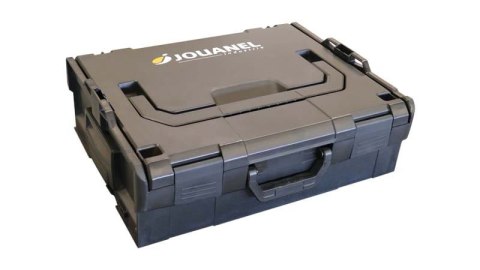

• Foldable carrying bag with foam.

  NB: Cordless power tool not included with this model.

  The quality of the profiles is essential for proper connection. Check your profile dimensions against standard standing seam dimensions.
