DSS 300 cc Insulation Board String Saw
27519.53
| Reviews | |
| Shipping within | 7 days |
| Shipping price | The Lack Of |
| The bar code | |
| EAN | 4032689197111 |
Zamówienie telefoniczne: 690 566 720
| Leave your phone |

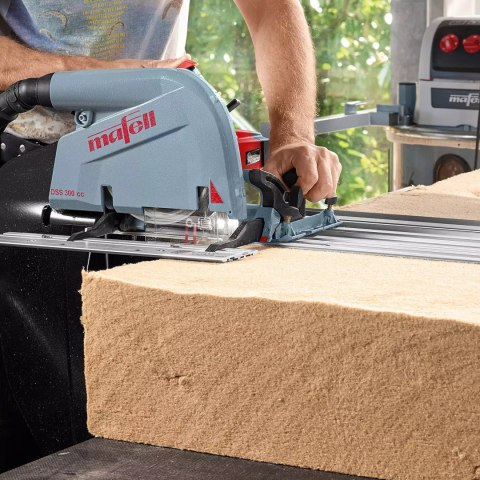

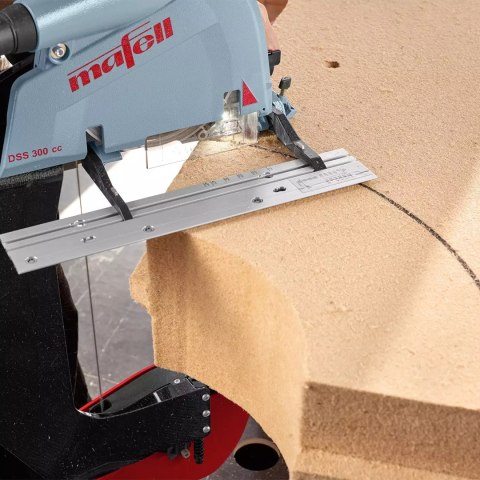

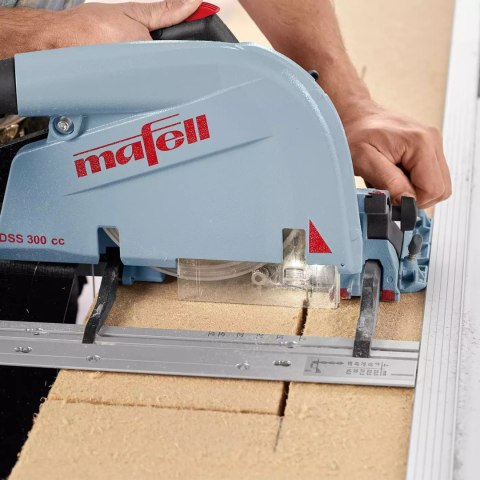

With the DSS 300 cc, MAFELL offers a unique system for processing both resilient and flexible wood fiber insulation boards. Cutting precision and precise fit result in improved insulation, reduced thermal bridges, and prevented structural damage to the insulating material. As a result, the DSS 300 cc significantly reduces costs and makes insulation work highly efficient.
Thanks to the perfect interplay of all system components and innovative details such as the cutting wire, carbon guide wedge, and chip ejector, high-precision cutting quality is achieved. In combination with the S 200 large-capacity dust extractor and the ST 1700 Vario cutting table, they form an unbeatable team.
With the right accessories, the possibilities for precise processing of insulation boards are virtually limitless. The compact, yet highly flexible cutting table allows for the highest precision, even when making very long cuts. The powerful, large-capacity dust extractor makes work easier and the work environment more comfortable.
BENEFITS:
- Two-dimensional tilt - The DSS 300 cc circular saw allows for angled cuts of up to 60°. Additionally, the cutting wire and carbon fiber guide wedge can be tilted back to a 45° angle.
- The carbon fiber guide wedge achieves extreme stiffness, preventing bending and, while reducing weight, ensuring the required precision.
- Automatic cutting wire tensioning ensures constant tension and excellent cut quality.
- The high-performance CUprex motor delivers concentrated power and high torque.
- The double toothed belt selector removes chips and dust from the kerf after the saw cut, thereby improving chip extraction and cutting precision.
APPLICATIONS:
- Longitudinal and cross cutting
- Angled cutting
- Processing options: Wood fiber insulation boards (fireproof, flexible), rigid PUR foam (without backing), EPS polystyrene, XPS polystyrene
TECHNICAL DATA
| Cutting height | 306 mm |
| Cutting height at a 45° angle | 6/8 mm |
| Cutting height at 60° | 0-30 degrees |
| Mitre cutting range | 650-1550 rpm |
| Reverse tilt range | 6.9 - 16.6 m/s |
| Idle speed | 4700 rpm |
| Motor | 230V/50 Hz |
| Kerf width | 6 mm |
| Dust extraction port diameter | 35 mm |
| Power consumption | 1800 W |
| Weight | 8.25 kg |
SCOPE OF DELIVERY
- 6 mm wide string cord (2 pcs)
- Double toothed belt
- Detachable bracket/slider
- 4 m power cable
- K-FIX mounting straps (2 pcs)
- Metal carrying case
- S 200 Large Capacity Vacuum Cleaner (Item No. 919701+206869)
- ST 1700 Vario Cutting Table (Item No. 91A601)
- ST-FE 200 Guide Unit (Item No. 207277)
- S-MH Machine Holder (Item No. 207164)
- F-FIX Clamps (2 pcs.) (Item No. 206760)
- F 110 Guide Rail, 1.1 m long (Item No. 204381)
